PureAir 100 & 50
Two sizes, one filtration chain.
PATENT PENDING
PureAir 200
Automatic particulate and toxic gas filtration system
An advanced air filtration system designed for laboratories and controlled environments.
- Capacity
- 1060m³/h
- Particle sizes measured
- 4
- HEPA filter grade
- H13
- TFT touchscreen display
- 7-inch
How it works
It measures, shows the readings on screen and adjusts fan speed automatically.
Through its touchscreen interface, PureAir 200 provides real-time monitoring of temperature (°C), humidity (%), particulate levels and T-VOC (Total Volatile Organic Compounds).
Particulate sensor
T-VOC sensor
Temperature and humidity
Touchscreen
Real-time monitoring
Fan motor
4-mode speed
Inputs: particulate and T-VOC readings
Measurement
Particulate sensor
T-VOC sensor
Temperature and humidity
Display
Touchscreen
Real-time monitoring
Automatic fan control
Fan motor
4-mode speed
Inputs: particulate and T-VOC readings
Automatic fan control
Based on data received from the TVOC and particulate sensors, the fan speed is automatically optimized, ensuring that ambient conditions remain stable within the preset threshold values.
- Particulate
- When configured according to the ISO 14644-1 Air Cleanliness Classification, the fan motor speed is automatically adjusted based on the measured air quality to help maintain optimal environmental conditions.
- T-VOC
- According to the globally recognized Air Quality Index (AQI), the fan motor speed is automatically adjusted to help maintain optimal air quality.
Sensors
Particles in four sizes, T-VOC with a separate sensor.
PureAir 200 measures and displays particles of 0.3, 0.5, 1, and 5 µm and the total volatile organic compounds (T-VOC) in the environment in real time.
Particulate sensor
- 0.3 µm
- 0.5 µm
- 1 µm
- 5 µm
- Sensor feature
- Laser scattering
- Air quality classification
- ISO CLASS-5
- ISO CLASS-6
- ISO CLASS-7
- ISO CLASS-8
- ISO CLASS-9
T-VOC sensor
- Sensor feature
- MOX-based digital gas sensing technology
Air quality classification
- 1Excellent
- 2Good
- 3Moderate
- 4Poor
- 5Unhealthy
Temperature and humidity
Temperature (°C) and humidity (%) are monitored in real time through the touchscreen interface.
User-friendly interface
A 7-inch touchscreen that can be used comfortably with gloves.
The 7″ capacitive, full-color TFT touchscreen provides easy and intuitive operation. It can be used comfortably with gloves and is resistant to liquid spills.

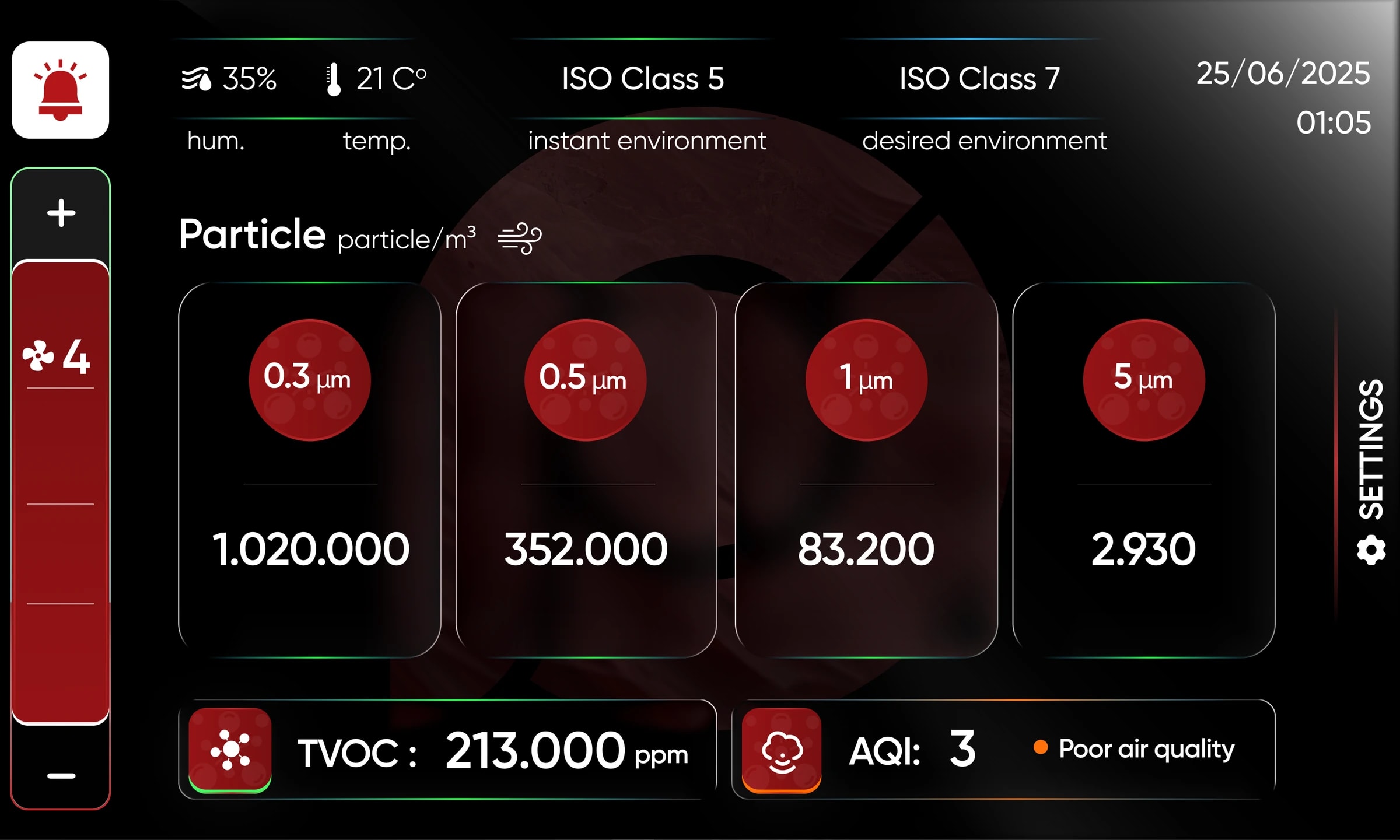

Screens are examples; the values shown are not measurement results.
Temperature (°C) and humidity (%) are monitored in real time.
The air quality classification for particles ranges from ISO CLASS-5 to ISO CLASS-9.
Readings for the four particle sizes are displayed in real time.
Total volatile organic compounds in the environment are displayed in real time.
The screen lists five classes, from ISO CLASS-5 to ISO CLASS-9.
Alongside the ISO classes, the screen also offers a manual option.
TVOC measurements can be displayed in ppm (parts per million) or ppb (parts per billion).
Particulate measurements are displayed in two units: particles/L and particles/m³.
Filters
Filtration, layer by layer.

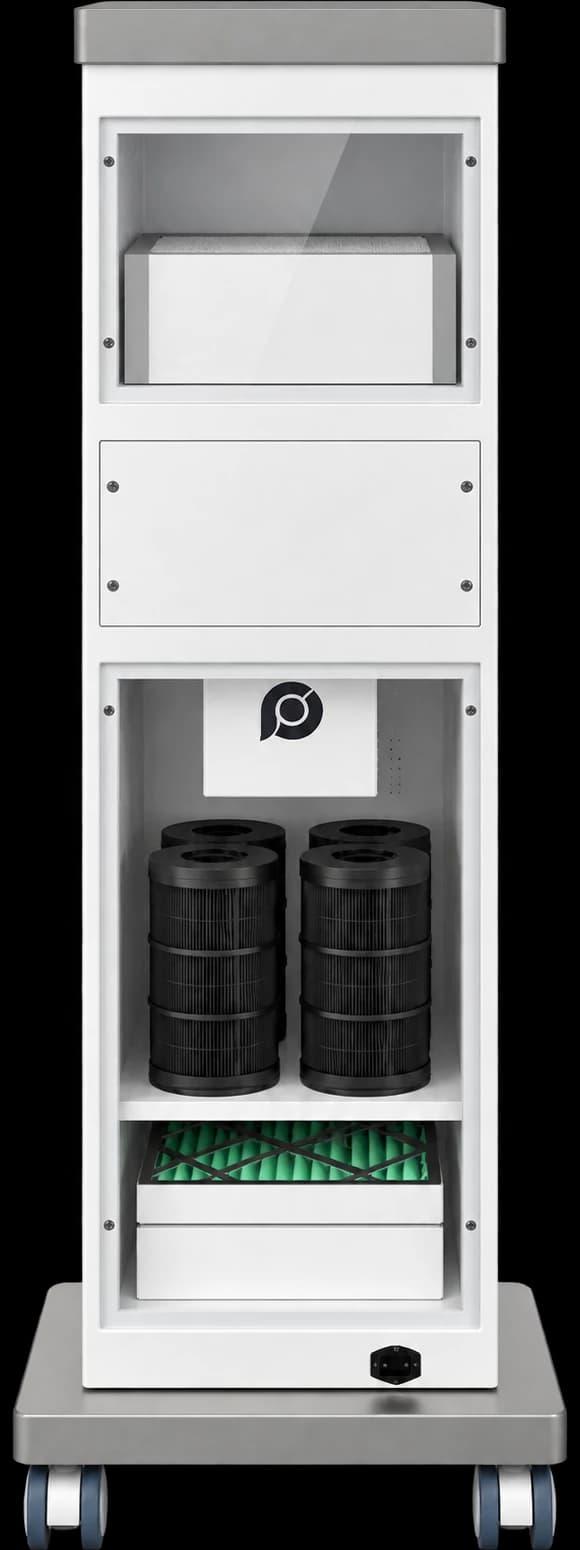

PureAir 200 houses an advanced pre-filter assembly, activated carbon cartridge filters and a HEPA filter. Air enters the unit at the bottom and passes through the G4 pre-filters, the activated carbon cartridges and the H13 HEPA filter before leaving at the top.
Air outletAir inlet
Stage 1
Quantity: 2. ISO Coarse (G4) pre-filters
Two ISO Coarse (G4) pre-filters with heights of 45 mm and 95 mm.
Stage 2
Quantity: 4. Activated carbon cartridge filters
Four cylindrical activated carbon cartridge filters designed to target VOCs.
Stage 3
Grade: H13. HEPA filter
Equipped with a High-Efficiency Particulate Air (HEPA) filter of H13 grade.
Maintenance and alerts
Filter replacement is tracked automatically.
Differential pressure sensor
PureAir 200, equipped with an integrated differential pressure sensor, provides both audible and visual alerts in the event of potential filter blockages.
Alarm system
The PureAir 200 alarm system monitors the optimal service life of your filters, automatically tracks replacement intervals, and notifies you when it is time to change them.
Filter sets
| Set | Codes |
|---|---|
| Semi-Annual Filter Set (6 Months) | PASA-00111RC048001 |
| Annual Filter Set (12 Months) | PAAF-11111RC048111 |
Technical Service
Fault diagnosis and repair, maintenance, filter replacement and installation.
PureAir 200
Technical specifications
General
- Mains voltage
- 220-240 V AC - 50/60Hz
- Maximum power
- 355 watt
- Capacity
- 1060 m³/h
- Fan motor speed mode
- 4-mode
- Maximum noise level
- 65 dB
Size and weight
- Dimensions (D × W × H)
- 520 × 660 × 1786 mm
- Weight
- 85.2 kg
Display
- TFT touchscreen display
- 7-inch
- Display type
- Full-color capacitive TFT touchscreen; usable with gloves; resistant to liquid spills
- Monitored parameters
- Temperature (°C), humidity (%), particulate levels, T-VOC
Sensors
| Particle | T-VOC | |
|---|---|---|
| Sensor feature | Laser scattering | MOX-based digital gas sensing technology |
| Air quality classification | ISO CLASS-5, ISO CLASS-6, ISO CLASS-7, ISO CLASS-8, ISO CLASS-9 | 1 (Excellent), 2 (Good), 3 (Moderate), 4 (Poor), 5 (Unhealthy) |
| Units | Particles/m³ – Particles/L | ppm – ppb |
| Particle sizes | 0.3 µm, 0.5 µm, 1 µm, 5 µm | – |
Particle
- Sensor feature
- Laser scattering
- Air quality classification
- ISO CLASS-5, ISO CLASS-6, ISO CLASS-7, ISO CLASS-8, ISO CLASS-9
- Units
- Particles/m³ – Particles/L
- Particle sizes
- 0.3 µm, 0.5 µm, 1 µm, 5 µm
T-VOC
- Sensor feature
- MOX-based digital gas sensing technology
- Air quality classification
- 1 (Excellent), 2 (Good), 3 (Moderate), 4 (Poor), 5 (Unhealthy)
- Units
- ppm – ppb
Filters
- ISO Coarse (G4) pre-filters
- 2 · 45 mm and 95 mm high
- Activated carbon cartridge filters
- 4 · cylindrical
- HEPA filter
- H13 grade
