PHP 50
Portable heating plate
A multifunctional, slim and portable heated surface.
- Heated surface (mm)
- 470 × 370
- Temperature accuracy
- ±0.3°C
- Room temperature to 37°C
- < 30min
- Color TFT touchscreen
- 3.2-inch
Applications
37°C, from andrology to embryology.
- Andrology laboratory
- Maintains sample temperature at 37°C during sperm sample analysis.
- Embryology laboratory
- Keeps the temperature of follicular fluids and oocytes stable.
- Consumables
- Heats all consumables that require controlled warming and maintains their temperature at a desired level.
Heating

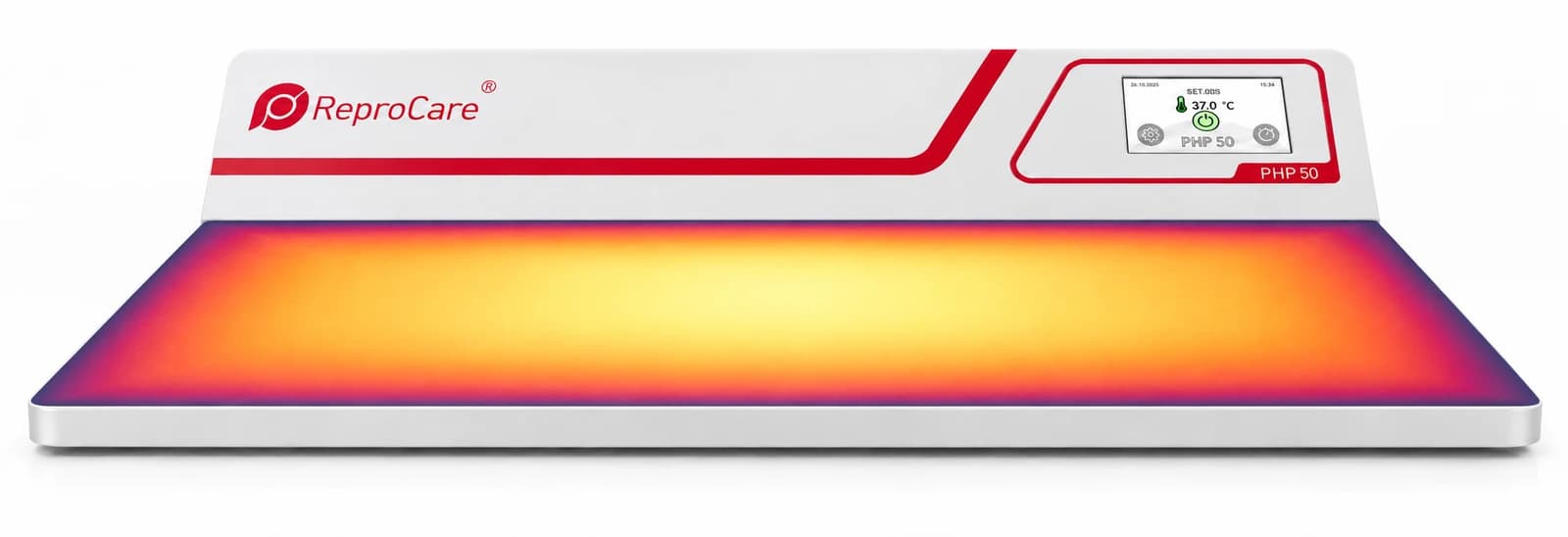

Precise, homogeneous heat distribution.
The PHP 50 maintains a consistently stable and uniform heating surface thanks to its advanced heating film resistor. This feature has been tested and documented by independent accredited laboratories.
- PID control and PT100 sensor
- The heating film resistor is controlled via a PID system in combination with a PT100 sensor, ensuring highly precise temperature regulation.
- Fast heating time
- Thanks to its high thermal conductivity aluminum structure, it reaches 37°C from room temperature in less than 30 minutes.
Control panel
Ready when you enter the lab.
Automatic start-up
The PHP 50 control panel is equipped with a timer function for automatic operation. It ensures the device is ready at the desired temperature when you enter the laboratory.
Timer
Initiates a countdown timer for procedures involving incubation or waiting periods without the need for an external device, and provides both audible and visual alerts when the set time has elapsed.
Touchscreen
Thanks to its 3.2″ resistive color TFT touchscreen, it is easy to operate and can be comfortably used while wearing gloves. It is resistant to liquid spill risks.
Low voltage
The PHP 50 with an integrated control panel operates at low voltage, ensuring user safety and helping to prevent unintended accidents.
Data transfer
Real-time temperature data can be transferred in detail to a computer using the Type-C cable supplied with the device.
PHP 50
Technical specifications
Heating
- Heated surface dimensions (W × D)
- 470 × 370 mm
- Temperature accuracy
- ±0.3 °C
- Temperature resolution
- 0.1 °C
- Control system
- PID control
- Sensor type
- PT100 Class A
Power
- Power input
- 24 V, 3.5 A
- Maximum power
- 75 watt
- Nominal power
- 55 watt
Size and weight
- External dimensions (W × D × H)
- 470 × 472 × 83 mm
- Weight (including power adapter)
- 5.5 kg
Display and data
- Screen
- 3.2″ color TFT touchscreen
- Data output
- Type-C
